Little Giant VCL45S High Capacity Condensate Removal Tank Pump

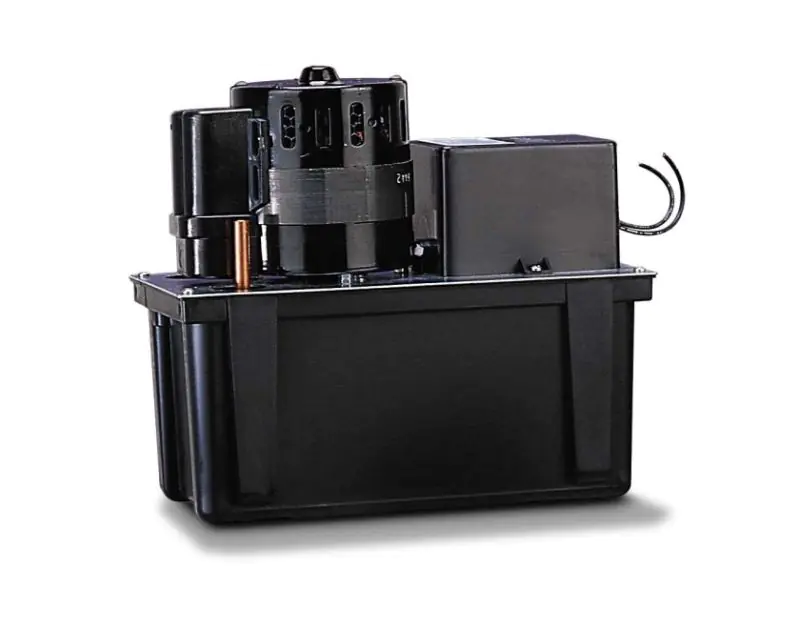

Little Giant VCL-45S High-Capacity Condensate Pump

The Little Giant VCL-45S is a high-performance condensate pump engineered for the automatic collection and removal of condensate from air conditioning, refrigeration, dehumidification, and high-efficiency oil or gas-fired condensing furnace and boiler systems. Ideal for residential and commercial applications where gravity drainage is impractical, this pump combines durability, efficiency, and advanced features to ensure reliable operation.

Key Features

• Powerful 1/5 HP Motor: Equipped with a fan-cooled, permanent split capacitor (PSC) motor, delivering a robust 450 gallons per hour (GPH) flow rate at 1 foot of head, ensuring efficient condensate removal.
• 1-Gallon Collection Tank: Constructed from durable ABS plastic, the large tank capacity minimizes pump cycling and handles high condensate volumes with ease.
• Stainless Steel Motor Shaft: Provides corrosion resistance and enhances the pump’s longevity, even in demanding environments.
• Automatic Operation: Features a float-activated switch (solid polymer) for automatic start/stop functionality, ensuring seamless condensate management.
• Overflow Detection Switch: Includes a dual-function (NO/NC) safety switch with 5-inch lead wires, factory-set to NO for equipment shutdown in case of high water levels, preventing overflows.
• Flexible Discharge Options: Comes with a 3/8-inch O.D. copper tubing discharge, with an optional check valve adapter (sold separately) for compatibility with 3/8-inch I.D. vinyl tubing.
• Dual Inlet Openings: Two 1-1/8-inch diameter inlets allow for versatile installation configurations.
• Thermally Protected Motor: Designed to handle water temperatures up to 120°F (49°C), ensuring safe operation in high-temperature environments.
• Convenient Power Supply: Includes a 6-foot, 3-conductor cable with a grounded 3-prong plug for easy installation.

Performance Specifications

The VCL-45ULS is available in two voltage options:

• 115V, 60 Hz: 3.5 amps, 185 watts, 450 GPH at 1 ft, 195 GPH at 15 ft.
• 230V, 50/60 Hz: 1.0 amps, 230 watts, with identical flow performance.
• Maximum Shut-Off Head: 45 feet (15.7 meters).

Construction and Durability

Built to last, the VCL-45S features high-quality materials:

• Pump Housing and Tank: ABS plastic for corrosion resistance and lightweight durability.
• Tank Cover: Galvanized steel for added strength.
• Impeller: Polypropylene, designed for smooth and efficient operation.

Maintenance and Service

To ensure optimal performance, regular maintenance is recommended:

• Annual Lubrication: Apply SAE 10 oil to the motor shaft at the start of each air conditioning season.
• Cleaning: Check and clean the float, volute, and inlet/outlet piping to ensure free movement and remove obstructions.
• Safety First: Always disconnect the unit from the power source before servicing.

Replacement Parts

Keep your pump running smoothly with available replacement parts, including the tank, switch assembly, impeller, and overflow detection switch (part numbers available in the product manual).

Why Choose the VCL-45S?

With its high-capacity design, reliable safety features, and durable construction, the Little Giant VCL-45S is the perfect solution for HVAC professionals and homeowners seeking a dependable condensate pump. Its versatility and ease of maintenance make it a standout choice for managing condensate in a wide range of applications.

Order yours today from AirconSpares.com and ensure efficient condensate removal for your HVAC systems.
