Henry 1/4 Inch Ball Valve With Schrader Extension

Name: Henry 1/4 Inch Ball Valve With Schrader Extension
Brand: Henry
SKU: 937202
Price: 28.72 GBP
Availability: InStock

HENRY

SKU

937202

£28.72 £23.93

Details

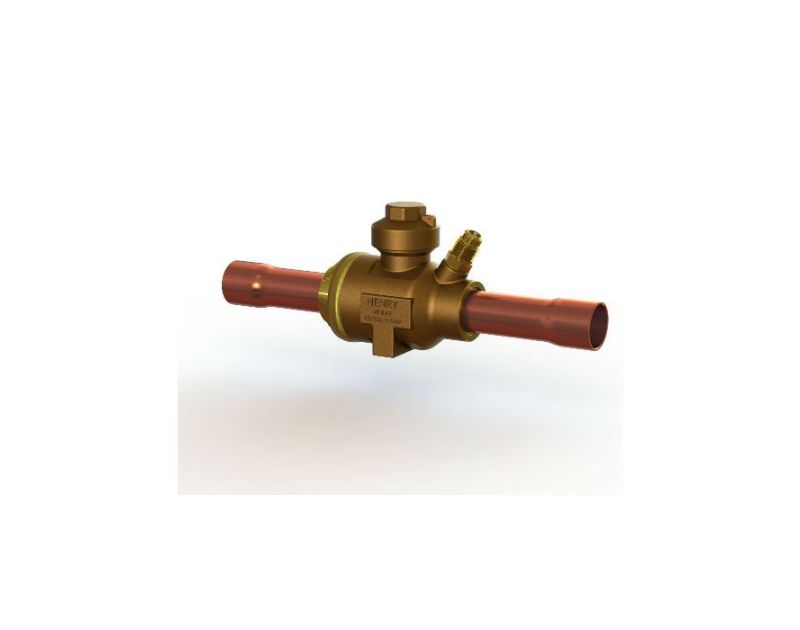

Henry 937202 1/4 Inch Ball Valve With Schrader Extension.

Applications:

Ball valves are used in a wide variety of air conditioning and refrigeration applications. They can be used for both liquid and gas applications. This type of valve is commonly used for isolating purposes. All valves are suitable for CO2, HCFC and HFC refrigerants along with their associated oils.

Sealing Integrity Features.

Premium quality PTFE ball seals.
Double O-ring stem seal design.
Premium quality neoprene stem O-ring seals.
Seal cap retainer – prevents loss of cap.
PTFE cap seal – acts as a secondary seal.

Materials of Construction:

The valve body, valve body adaptor, ball and seal cap are made from brass. The stem is made from plated steel. The pipe extensions are made from copper/K65 copper alloy. The ball seals are made from virgin PTFE/TFM, stem O-rings from neoprene/HNBR and cap seal from PTFE.

Installation Instructions – Main issues:

The valve body must be protected against excessive heat during installation to prevent damage to the seals. Full details are provided in the installation sheet, included with each valve.
