EC-1-DV Little Giant Mini Condensate Pump 553502

Little Giant EC-1-DV Mini-Split Condensate Pump

The Little Giant EC-1-DV Mini-Split Condensate Pump (Item No. 553507) is a compact, high-efficiency pump designed to automatically remove condensate from wall-mounted, ductless mini-split air conditioners up to 10 kW (34,000 BTU). Ideal for UK homes, offices, and small commercial spaces, this pump ensures reliable condensate management when gravity drainage isn’t possible, protecting your aircon system from overflow and water damage.

Key Features

• Dual Voltage Design: Operates on 110-240V, 50/60 Hz, perfectly suited for UK-standard 230V power supplies, drawing only 0.18A (18W).
• Quiet Performance: Noise level as low as 21 dB(A), thanks to advanced noise reduction and elastomeric vibration isolators.
• Reliable Operation: Solid-state switching with Hall effect sensors eliminates mechanical float failures, featuring a high-water safety switch (8A resistive, 250V).
• Powerful Pumping: Lifts water up to 10 metres vertically with a flow rate of 10.2 litres/hour at 0m, or 5.7 litres/hour at 3m (see specs below).
• Easy Installation: Includes a wall bracket for the pump, adhesive for the reservoir, and a 1.5-metre power cable with a 1-metre sensor cable.
• Durable Build: Operates in ambient temperatures from 0°C to 60°C, with thermal protection up to 80°C and a 2-year warranty.

Why Choose the EC-1-DV?

Engineered by Little Giant, this pump offers a smart two-piece design: a clear reservoir for easy water level checks and a pump/controller that can be flexibly positioned up to 1 metre away. The reservoir features an extra-large filter screen and multi-step drain hose adapter (13mm, 16mm, 19mm), simplifying maintenance and compatibility with various aircon setups. With a maximum water temperature tolerance of 60°C, it’s built to handle demanding conditions while keeping noise to a minimum.

Applications

Perfect for ductless mini-split air conditioners, fan coils, and suspended ceiling units in UK properties, the EC-1-DV excels in tight spaces like false ceilings, behind wall units, or within plastic conduits. It’s designed for intermittent use (max 50% duty cycle, 3-minute ON cycles), making it a dependable choice for efficient condensate removal.

Performance Specifications

What's Included

• EC-1-DV Pump with Controller
• Clear Reservoir with Filter Screen

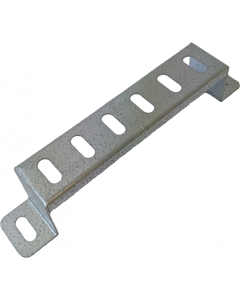

• Pump Mounting Bracket
• 1.5m Power Cable, 1m Sensor Cable
• 13mm ID Tubing (1.5m) and Multi-Step Adapter
• Installation Manual

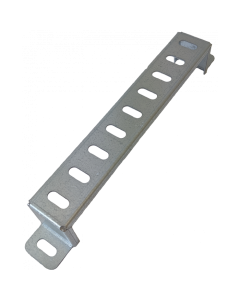

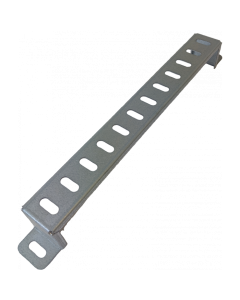

• Optional: Reservoir Mounting Bracket (sold separately, Order No. 10000011991)

Keep your aircon system running smoothly with the Little Giant EC-1-DV Mini-Split Condensate Pump – a quiet, powerful, and easy-to-install solution for UK condensate needs. Order now from airconspares.com and trust in Little Giant’s proven reliability!
