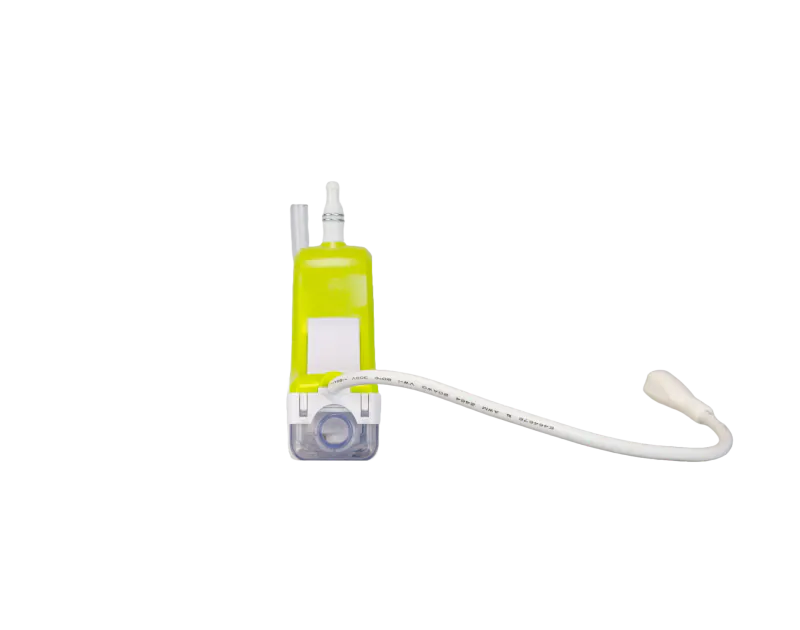

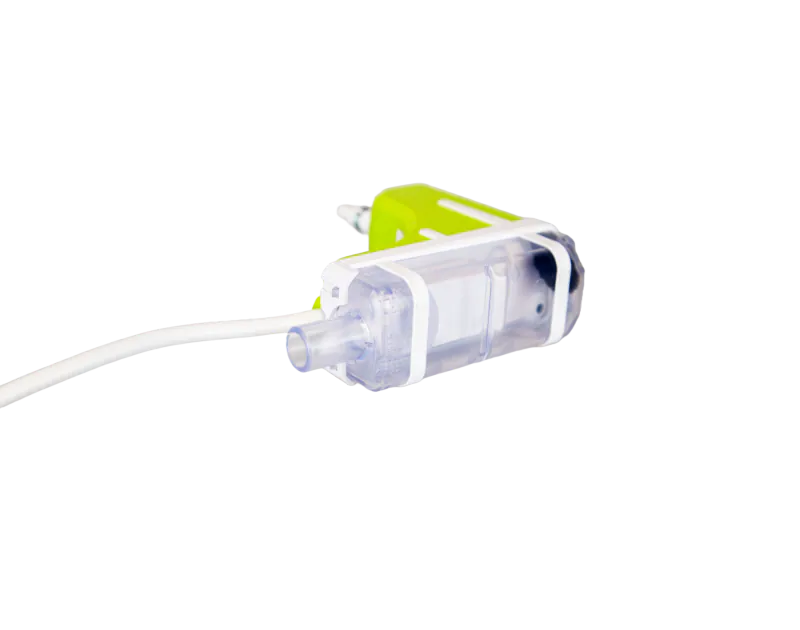

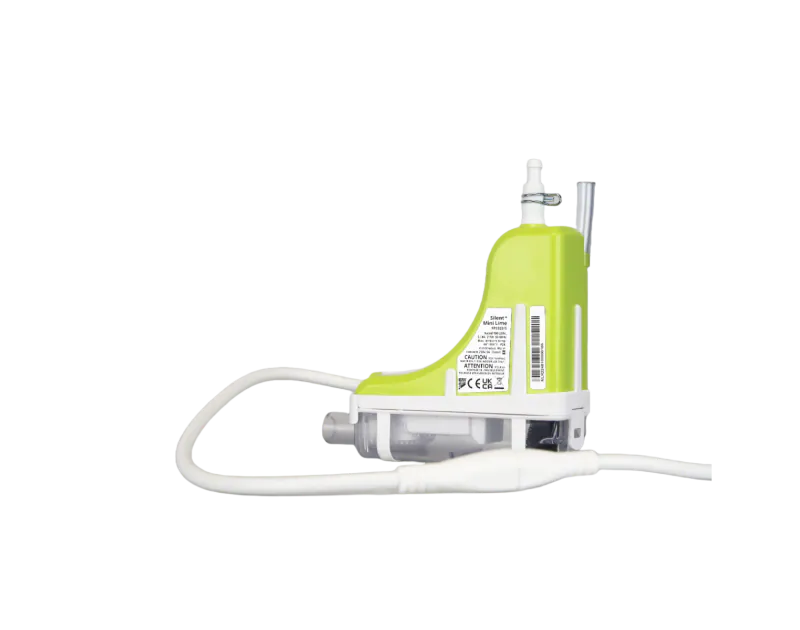

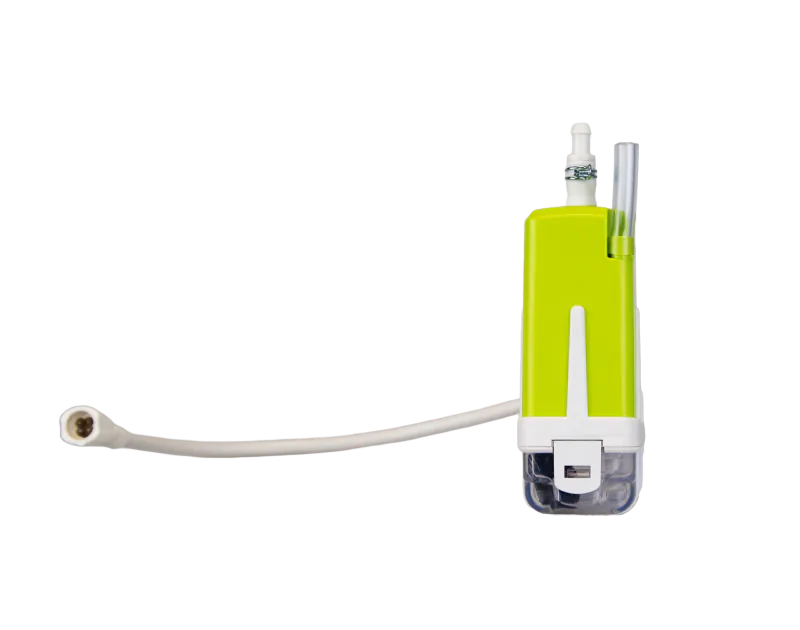

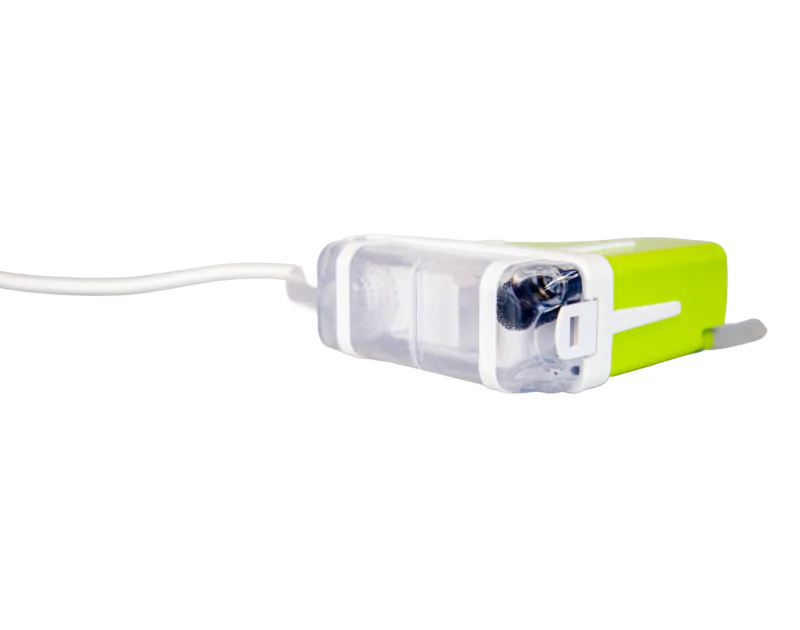

Aspen Silent+ Mini Lime Condensate Pump FP3322-5

Discover the Aspen Silent+ Mini Lime Condensate Pump FP3322-5, a 5th-generation condensate removal pump designed for ultimate performance and whisper-quiet operation. With a noise level of just 16dB(A) at 1 meter, it’s the quietest elbow pump available, making it perfect for noise-sensitive commercial environments like offices and retail spaces. Available now at airconspares.com, this pump delivers exceptional flow, energy efficiency, and installation flexibility.

Engineered with proven technology, the Silent+ Mini Lime boasts a maximum flow rate of 40L/h and a recommended head of 15m, all while consuming up to 10 times less power than comparable models. Its anti-vibration technology ensures near-silent operation, while the compact elbow design and backwards-compatible Plug & Play cable make installation quick and seamless—no damper or anti-siphon required. Compatible with all popular trunking systems, it’s a versatile choice for any air conditioning setup.

Built for reliability, this pump is self-priming, features IP protection, and includes a safety switch for added security. It operates on a universal power supply (100-250 VAC, 50-60Hz) and supports a maximum unit output of 16kW / 54,000 Btu/h, with an ambient temperature tolerance up to 40°C. Backed by a 3-year guarantee, the Silent+ Mini Lime is a durable, energy-efficient solution from Aspen Pumps, a trusted name in condensate management.

Key Features:

• Ultra-quiet operation at 16dB(A) – the quietest elbow pump available
• 40L/h max flow rate and 15m recommended head
• Up to 10x lower power consumption for energy savings
• Anti-vibration technology for minimal noise
• Backwards-compatible Plug & Play cable for easy upgrades
• Fits all popular trunking systems with quick, flexible installation
• Self-priming with IP protection and safety switch
• Universal power supply: 100-250 VAC, 50-60Hz
• 3-year manufacturer guarantee

Safety Instructions:

To ensure safe installation and operation of the Silent+ Mini Lime, please adhere to the following guidelines:

• Installation and servicing must be performed by a competent, qualified technician in compliance with local and national electrical codes.
• This pump is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, unless supervised or instructed by a responsible individual.
• Children must not play with the pump to prevent damage or injury.
• If the power cord is damaged, the entire pump must be replaced—do not attempt repairs.
• Always switch off the isolator or disconnect the pump from the electrical supply before assembling, disassembling, or cleaning, following standard wiring regulations.
• The pump is designed for indoor use only and must not be exposed to freezing temperatures.
• Saturate the foam filter with water before use to ensure proper operation.

Tools Required for Installation:

For a smooth and efficient installation of the Silent+ Mini Lime, gather the following tools:

• Screwdriver (Phillips or flathead, depending on mounting hardware)
• Wire strippers and cutters (for electrical connections)
• Adjustable wrench (for securing inlet/outlet connections)
• Measuring tape (to position the pump and tubing)
• Level (to ensure proper alignment)
• Drill and bits (if mounting to a surface)
• Electrical tester (to verify power supply safety)
• Pipe cutter or scissors (for trimming tubing to length)

Shop the Aspen Silent+ Mini Lime Condensate Pump FP3322-5 today at airconspares.com and elevate your air conditioning system with unmatched silence, efficiency, and reliability. For further assistance, refer to the product manual or contact our team.
