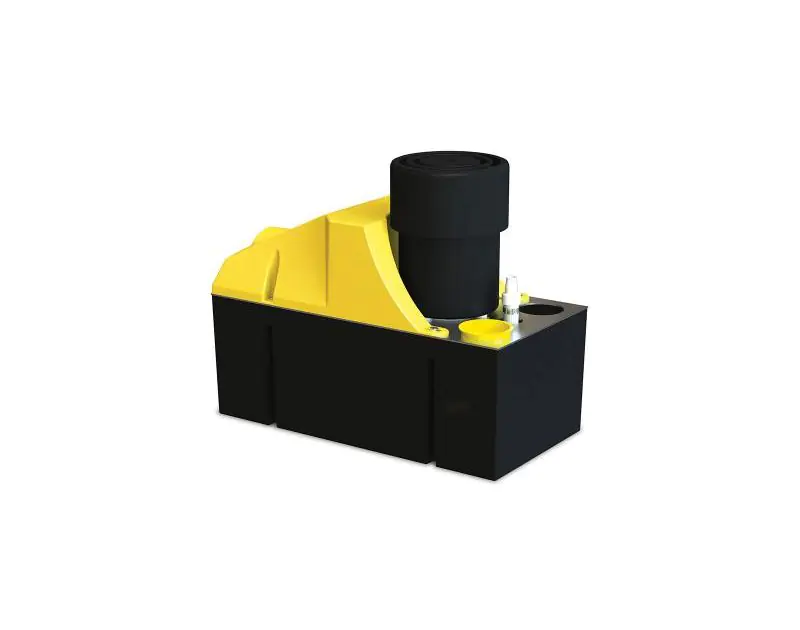

Aspen HD 6 Heavy Duty Condensate Pump FP2074/2

Aspen HD 6 Heavy Duty Condensate Pump FP2074/2

The Aspen HD 6 Heavy Duty Condensate Pump (FP2074/2) is a high-performance solution designed to meet the demands of large-scale HVAC and refrigeration systems. Engineered for reliability and efficiency, this pump excels at rapidly removing substantial volumes of condensate water. It is ideal for commercial and industrial environments, such as offices, retail spaces, and manufacturing facilities.

Key Features

• High Flow Rate: Capable of handling up to 900 litres per hour, ensuring quick and effective condensate removal even in high-demand settings.
• 6-Metre Discharge Head: Delivers a maximum recommended head of 6 metres with a flow rate of 180 l/h, providing flexibility for various installation requirements.
• Large Tank Capacity: Equipped with a 4-litre tank, allowing it to manage significant condensate loads without frequent cycling.
• Dual Float System: Features an internal float switch that activates the pump at a pre-set level, plus a secondary safety float switch to prevent overflow and protect equipment in case of pump failure.
• Non-Return Valve: Prevents backflow and siphoning, ensuring consistent performance and system integrity.
• IP Protection: Built with an IP rating for enhanced durability and resistance to environmental factors.
• Quiet Operation: Designed to operate with minimal noise, making it suitable for environments where sound levels matter.

Applications

The Aspen HD 6 is perfect for heavy-duty applications, supporting systems up to 1200 kW (4 million Btu/h). It’s well-suited for:

• Large air conditioning units
• Commercial refrigeration plants
• Dehumidifiers
• Air handling units (AHUs)

Whether you’re managing multiple refrigeration units or a high-capacity air conditioning system, this pump ensures condensate is removed efficiently, keeping your equipment running smoothly and your environment clean.

Installation and Specifications

Installation is straightforward, with the pump designed to sit level on its base. The discharge piping requires a 9mm internal diameter to ensure optimal flow without kinks or blockages. The pump operates on a 230V AC, 1.5A power supply and is rated for continuous use in ambient temperatures up to 40°C and water temperatures up to 40°C.

• Inlet/Outlet: Standard connections for easy integration into existing systems.
• Safety Switch: Pre-wired low-current safety switch with normally closed contacts to shut off the system or trigger an alert in case of failure.
• Max Unit Output: Supports high-capacity systems with ease.

Why Choose the Aspen HD 6?

Built for durability and performance, the Aspen HD 6 combines power, reliability, and ease of use. Its robust construction ensures it can withstand tough conditions, while its advanced features, like the dual float system and non-return valve, provide peace of mind. Whether you’re maintaining a large HVAC setup or need a dependable pump for a refrigeration plant, the HD 6 delivers consistent results, keeping your systems operational and efficient.

Upgrade your condensate management with the Aspen HD 6 Heavy Duty Condensate Pump – the perfect blend of strength, reliability, and simplicity for your air conditioning and refrigeration needs.
